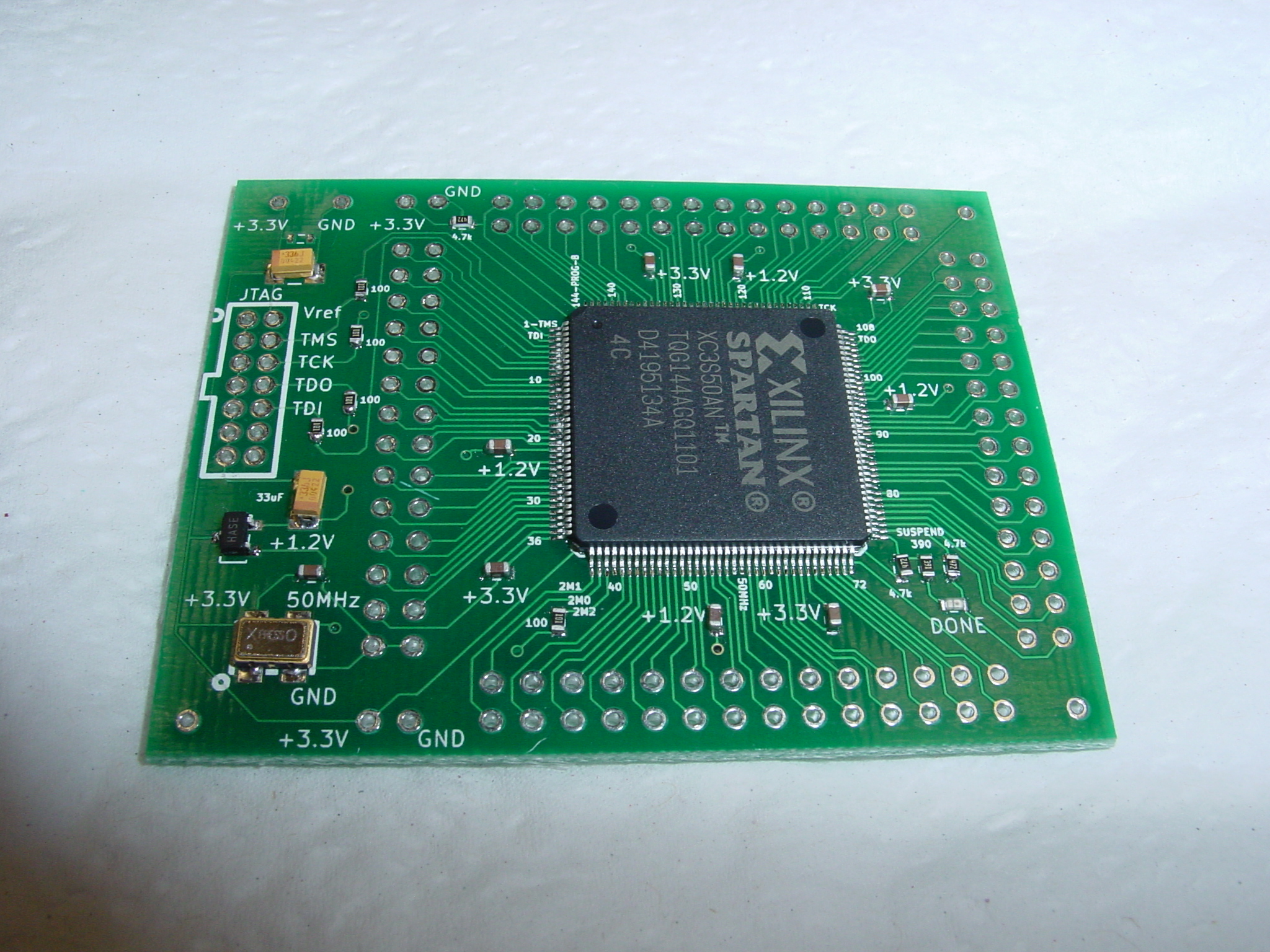

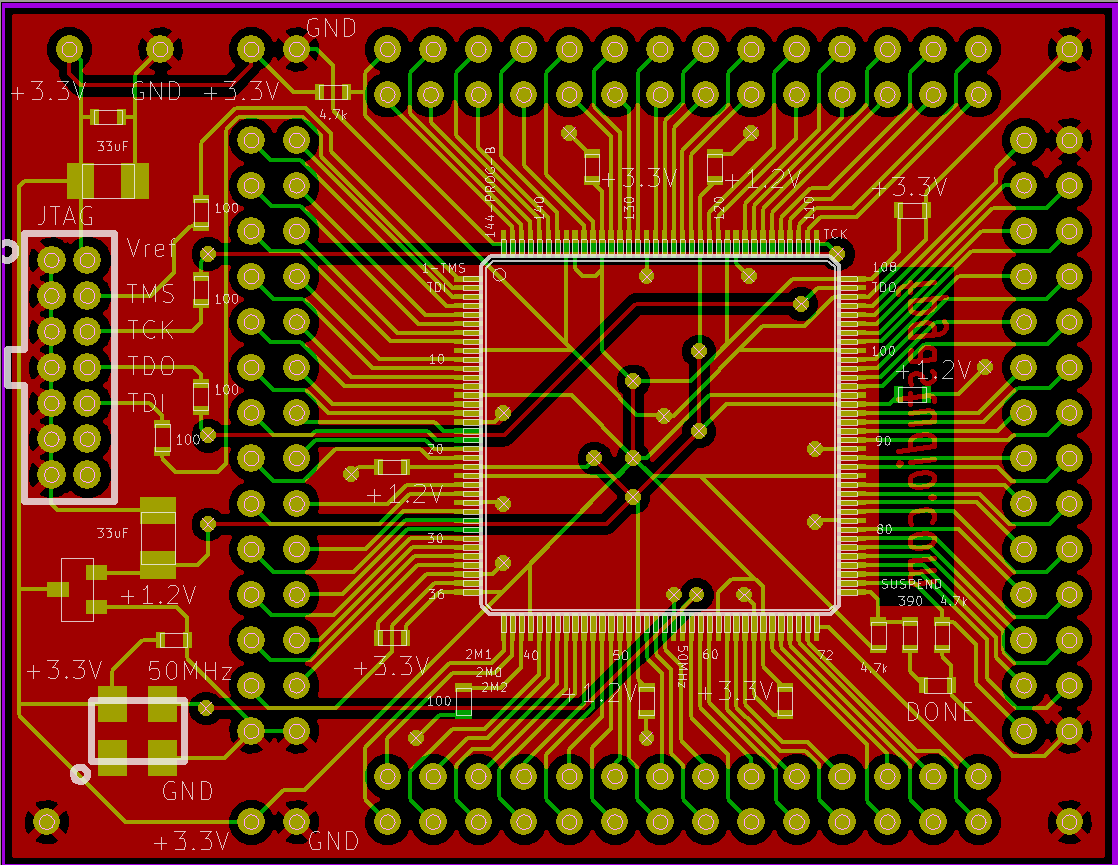

Xilinx® Spartan 3AN basic
board:
(Ebay description)
FPGA XC3S50AN, package TQG144, in-system Flash memory, anti-cloning protection.
50 MHz clock @ pin 57, Frequency Stability: ± 25 PPM
JTAG connector layout compatible with Xilinx® Platform Cable USB II, Model DLC10. (JTAG connector available for additional $1)
Easy access to all I/O's (108 pins), I/O layout is compatible with 28 positions connector header 0.1" pitch
(Example: TSW-114-07-G-D, Samtec Inc. Digi-Key number: SAM1028-14-ND)
Single power supply 3.3V
"DONE" LED
Board size: 1.9 x 2.45 inches.
Test configuration is loaded (pulses at pins 31, 32)
Please add $1 to receive a JTAG connector (14 pin header, 2mm pitch, compatible with Xilinx® Platform Cable USB II)
The board is fully functional, test configuration was designed and loaded using Xilinx® ISE Design Suite and Platform Cable USB II.
For more information about FPGA XC3S50AN go to xilinx website and search for the datasheet DS557.
(Ebay description)
FPGA XC3S50AN, package TQG144, in-system Flash memory, anti-cloning protection.
50 MHz clock @ pin 57, Frequency Stability: ± 25 PPM
JTAG connector layout compatible with Xilinx® Platform Cable USB II, Model DLC10. (JTAG connector available for additional $1)
Easy access to all I/O's (108 pins), I/O layout is compatible with 28 positions connector header 0.1" pitch
(Example: TSW-114-07-G-D, Samtec Inc. Digi-Key number: SAM1028-14-ND)
Single power supply 3.3V
"DONE" LED
Board size: 1.9 x 2.45 inches.
Test configuration is loaded (pulses at pins 31, 32)
Please add $1 to receive a JTAG connector (14 pin header, 2mm pitch, compatible with Xilinx® Platform Cable USB II)
The board is fully functional, test configuration was designed and loaded using Xilinx® ISE Design Suite and Platform Cable USB II.
For more information about FPGA XC3S50AN go to xilinx website and search for the datasheet DS557.
